Name: 12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
Brand: Epoch Batteries
Availability: InStock
Rating: 5 (4 reviews)

Specifications

Energy Capacity: 5.89 kWh
Continuous Output: 230A @ 25°C
Peak Output: 500A (30 Seconds) , 1300A (1 Second)
Max Charge Rate: 210A @ 25°C

Key Benefits

Run Large InvertersUp to 3,000W+ continuous
Charge in Freezing TempsSelf-heating down to -22°F
Monitor via BluetoothLive data in the Epoch app
Victron CompatibleSeamless system integration
11-Year WarrantyBest-in-class coverage
4,000+ CyclesA decade of daily use

Battery Intelligence

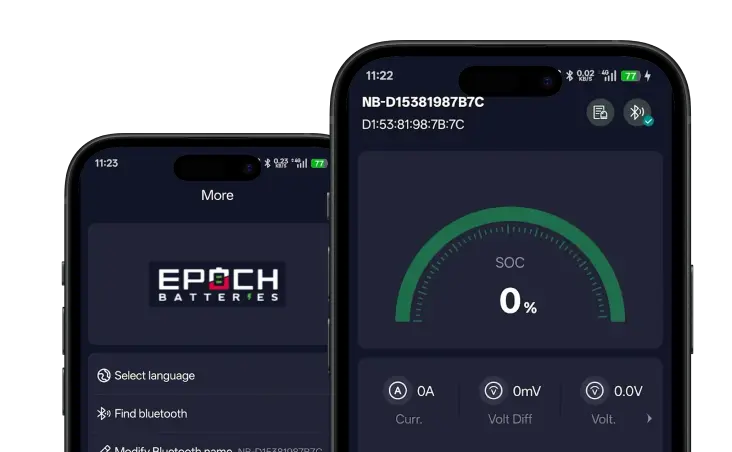

Bluetooth App Monitoring

Your whole system, in your pocket

Connect over Bluetooth to track exactly what your battery is doing in real time. No guesswork, no extra hardware.

State of charge
Cell voltage
Temperature
Charge / discharge cycles
System health alerts

12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh) Victron ready

Victron Integration

Built to talk to your Victron system

Native Victron communication means seamless monitoring and control across your GX devices, so the battery is fully Victron Ready out of the box.

GX Device Support
Remote Monitoring
Advanced System Diagnostics
Seamless Integration
Victron Ready

Elite Series V2-T heated Bluetooth LiFePO4 power

Epoch 12V 460Ah V2-T Elite Series LiFePO4 Battery

High-capacity 5.89kWh lithium storage with internal heating, Bluetooth monitoring, Victron communication, and IP67 protection.

The Epoch 12V 460Ah V2-T Elite Series LiFePO4 Battery is built for serious marine, RV, solar, off-grid, and industrial energy-storage systems. With 5.89kWh of usable energy, 230A continuous output, 210A continuous charging, internal heating, Bluetooth app monitoring, Victron-ready CAN communication, and an IP67 waterproof enclosure, this battery is designed for high-demand house-power installations that need reliable lithium performance.

460Ah

Capacity

5.89kWh

Stored energy

230A

Continuous output

IP67

Waterproof rating

Built for high-capacity systems

11-year warranty Manufacturer coverage

U.S.-based support Help when you need it

Elite Series V2-T High-capacity platform

Victron ready CAN / DVCC communication

Advanced BMS Built-in protection

UL1973 certified pack Certified battery pack

Elite Series lithium energy storage

High-output 12V power with smart monitoring and Victron integration.

The Epoch C12460A-A combines high-capacity LiFePO4 storage with a smart BMS, internal heating, Bluetooth visibility, and CAN-based communication for larger mobile and stationary power systems. It is designed to support serious house-power loads, solar charging, inverter systems, and off-grid energy storage while reducing maintenance compared with traditional lead-acid battery banks.

Built-in intelligence helps users monitor real-time performance through the Epoch app, while Victron communication support allows compatible GX devices to coordinate charging through DVCC. The integrated user-serviceable Class T fuse, external power button, battery gauge, and IP67 enclosure make this battery a strong choice for demanding 12V installations where safety, serviceability, and high usable energy matter.

Compatible applications

Marine, RV, solar, off-grid, industrial, and large inverter systems.

✓ Marine house-power systems for electronics, refrigeration, lighting, pumps, and auxiliary loads.
✓ RV, camper, motorhome, travel trailer, and van electrical systems.
✓ Off-grid cabins, solar energy storage, and backup power systems.
✓ Large inverter systems up to 3,000W+ continuous when the full installation is properly sized.
✓ Industrial and mobile power systems that require high-capacity 12V lithium storage.
✓ Trolling motor and onboard accessory systems where voltage, current, and charging requirements match.
✓ Victron-based systems using compatible GX devices and DVCC communication.
✓ Parallel banks up to 16 matched batteries for expanded capacity.
✓ Series strings up to 4 matched batteries for higher-voltage system designs, where supported by the manufacturer.

Battery features

High-capacity lithium performance with built-in monitoring, heating, communication, and protection.

460Ah capacityDelivers 5.89kWh of usable stored energy for high-demand 12V systems.

230A continuous outputSupports demanding loads and large inverter systems when wiring and protection are properly sized.

210A continuous charge ratingAccepts high-current charging from compatible lithium charging equipment.

Peak output capabilityRated for 500A for 30 seconds and 1,300A for 1 second for short-duration surge loads.

Internal heatingBuilt-in heating supports cold-weather charging and helps extend usability in freezing conditions.

Bluetooth monitoringView battery status, state of charge, cell voltage, temperature, cycles, and system alerts from the Epoch app.

Victron communicationsCAN-bus communication with distributed charge control via DVCC for compatible Victron systems.

Integrated Class T fuseUser-serviceable Eaton Class T fuse helps improve safety and simplify system design.

External power button and gaugeIncluded local control and status display make installation and operation easier.

IP67 waterproof enclosureDust-tight and water-resistant construction for demanding marine, RV, and mobile environments.

Advanced smart BMSHelps protect against overcharge, over-discharge, over-current, short circuit, and temperature extremes.

Series and parallel supportSupports up to 4 batteries in series or up to 16 batteries in parallel; series-parallel is not supported.

4,000+ cycle lifespanLong-lasting LiFePO4 performance with maintenance-free operation.

UL1973 certified packCertified battery pack with UL1642, UL9540A, and IEC 62619:2022 certified cells.

What can it run?

Real-world examples for a single 5.89kWh battery. Runtime varies by load, environment, and installation.

3,000W+ inverter loadsSupports large inverter applications when the installation is properly engineered.

100 lb thrust trolling motorProduct-page example lists all-day runtime depending on usage and conditions.

13.5K BTU RV air conditionerEstimated 4–6 hour runtime under the product-page example conditions.

Off-grid cabin core loadsEstimated 24+ hour runtime for typical core loads, depending on consumption.

Compatible chargers and system components

Recommended equipment considerations for a complete installation.

✓ Lithium-compatible inverter chargers, converters, solar charge controllers, and DC-to-DC chargers.

✓ Victron GX devices, Cerbo GX, Ekrano GX, or compatible monitoring hardware for CAN / DVCC integration.

✓ Properly sized disconnects, busbars, cables, lugs, and downstream overcurrent protection.

✓ Matched Epoch V2-T batteries for supported series or parallel battery banks.

✓ Remote monitoring, shunt, and system documentation package for serviceable installations.

Specifications

Full technical details, dimensions, weight, configuration limits, and charging settings.

General

Brand Epoch Batteries

Model / SKU C12460A-A

Series Elite Series V2-T

Battery type Heated Bluetooth deep-cycle LiFePO4 battery

Chemistry LiFePO4 / Lithium iron phosphate

Rated capacity 460Ah

Cell configuration 4S2P

Bluetooth Yes — Bluetooth 4.0, compatible with the Epoch app

CAN communication CAN-bus 500kbit/s with Victron communication support

Victron integration Distributed charge control via DVCC with compatible GX devices

Internal heating Yes — 180.67W heater power at 14.6VDC

External controls External power button and battery gauge included

Cycle life 4,000+ cycles published product rating

Voltage and capacity

Nominal voltage 12.8V

Nominal capacity 460Ah

Energy capacity 5.888kWh / 5.89kWh

Maximum voltage 14.52V

Minimum voltage 10.4V

Operational state of charge 0–100%

Internal resistance ≤8mΩ

Self-discharge rate ≤3% per month

Current ratings

Published continuous discharge 230A @ 25°C

Published continuous charge 210A @ 25°C

Peak output 500A for 30 seconds; 1,300A for 1 second

Product-page continuous output 230A

Max charge rate 210A @ 25°C

Integrated fuse User-serviceable Eaton Class T fuse

Series and parallel configuration

Series connections Up to 4 units

Parallel connections Up to 16 units

Series-parallel configuration Not supported

Bank design note Use matched batteries of the same model, age, capacity, and state of charge.

Temperature and heating

Charge temperature range 0°C to 50°C / 32°F to 122°F, with internal heating support

Discharge temperature range -20°C to 50°C / -4°F to 122°F

Storage temperature range, ≤1 month -20°C to 45°C / -4°F to 113°F

Storage temperature range, ≤1 year 0°C to 35°C / 32°F to 95°F

Charge low-temperature protection 0°C, with heating behavior

Heater activation, charge 5°C

Heater deactivation, charge 10°C

Cooling method Passive convection

Dimensions and weight

Length 20.86 in / 529.8 mm

Width 8.65 in / 219.8 mm

Height 12.06 in / 306.3 mm

Overall dimensions 20.86 in L × 8.65 in W × 12.06 in H

Weight 97.55 lb / 44.25 kg

Mechanical

Case material PC + ABS, UL94 V-0

Terminals M8 bolts

Terminal torque 12 N·m / 8.85 lb-ft

Ingress protection IP67, dust-tight and immersion-rated to ≤1m for ≤30 minutes with seals/glands installed

Rated pressure 86–106 kPa

Recommended charging settings

Absorption voltage 14.2V

Absorption time 15 minutes per battery

Float voltage 13.5V

Equalization Off / disabled

Temperature compensation Disabled

Charge profile CC/CV, no equalization

Victron systems Use the communication harness, confirm battery visibility on the GX device, enable DVCC, and set Epoch as controlling BMS.

BMS protection and compliance

Built-in BMS Yes — smart battery management system

Overcharge protection Yes

Over-discharge protection Yes

Over-current protection Yes

Short-circuit protection Yes

High and low temperature disconnects Yes

Internal fuse certification UL60691 certified internal fuse

Cell certifications UL1642, UL9540A, IEC 62619:2022 certified cells

Pack certification UL1973 certified battery pack

Other compliance CE and RoHS

Warranty 11-year manufacturer warranty

Continuous charge and discharge values are listed using Epoch’s product page and C12460A-A technical bulletin ratings. Always confirm the latest label, manual, and installation requirements for the exact battery being installed.

IP67 waterproof protection

Dust-tight. Water-resistant. Built for demanding environments.

The IP67 enclosure is designed to protect the battery from dust and water ingress, including immersion up to 1 meter for up to 30 minutes when all seals and glands are properly installed. It is well-suited to demanding marine, RV, and outdoor use, but damaged seals, open ports, or permanent submersion should be avoided.

Victron-ready battery communication

CAN communication with distributed charge control via DVCC.

For compatible Victron systems, connect the battery communication harness to the appropriate GX device, confirm the Epoch battery appears on the device list, enable DVCC, and set Epoch as the controlling BMS and battery monitor. The system can then coordinate charging behavior using battery-reported limits and system data.

Why upgrade to Epoch LiFePO4?

More usable energy. Less maintenance. Smarter system control.

LiFePO4 technology provides stable voltage output, long cycle life, fast charging capability, and maintenance-free operation. Compared with traditional lead-acid battery banks, this Epoch lithium battery provides higher usable energy, lower maintenance, and integrated intelligence in a cleaner high-capacity package.

Fitment and installation note

Verify your complete system before installation.

Always confirm battery compartment dimensions, cable clearance, terminal compatibility, charging equipment, overcurrent protection, disconnecting means, system voltage, and communication requirements before installation. Use lithium-compatible chargers and controllers programmed within Epoch’s recommended settings. For multi-battery systems, use matched batteries and follow Epoch’s manual for series, parallel, DIP switch, communication, torque, and commissioning requirements.

Frequently asked questions

Common questions about fitment, charging, Victron integration, Bluetooth monitoring, and lithium performance.

How much energy does this battery store?

The Epoch 12V 460Ah V2-T stores approximately 5.89kWh of usable energy, making it suitable for large 12V house-power, marine, RV, off-grid, and solar energy-storage systems.

Is this battery designed for engine starting or cranking?

No. The Elite Series V2-T platform is intended for deep-cycle house-power and energy-storage service. Do not use this model as an engine-starting battery unless Epoch provides application-specific approval.

Does it have internal heating?

Yes. This battery includes internal heating for cold-weather charging support. The product page highlights heated cold-weather readiness, while the installation values include heater behavior and low-temperature charge protection.

Does this battery have Bluetooth monitoring?

Yes. Bluetooth monitoring lets users view state of charge, cell voltage, temperature, charge/discharge cycles, and system health alerts from a compatible mobile device using the Epoch app.

Is it compatible with Victron systems?

Yes. The V2-T includes CAN communication and Victron integration with distributed charge control via DVCC. For Victron systems, connect the communication harness, confirm the battery appears on the GX device, enable DVCC, and set Epoch as the controlling BMS.

Can multiple batteries be connected together?

Yes. This 12V model supports up to 4 batteries in series or up to 16 batteries in parallel. Series-parallel configurations are not supported. Use matched batteries of the same model, age, capacity, and state of charge.

What charger settings should I use?

For non-Victron systems, use lithium-compatible charging equipment with 14.2V absorption voltage, 15 minutes of absorption time per battery, 13.5V float voltage, equalization off, and temperature compensation disabled.

Is the battery waterproof?

The enclosure is IP67 rated, meaning it is dust-tight and rated for immersion up to 1 meter for up to 30 minutes when all seals and glands are properly installed. It should not be used with damaged seals or treated as permanently submersible equipment.

What size inverter can this battery support?

Epoch lists support for large inverters up to 3,000W+ continuous when the system is properly designed. Final inverter compatibility depends on wiring, protection, inverter surge demand, battery quantity, and installation conditions.

What is included with the battery?

The product page lists an external power button and battery gauge as included, along with an integrated user-serviceable Eaton Class T fuse and built-in smart BMS protection.

High-Capacity Battery Comparison

Compare Epoch 460Ah 12V Power

Three large-format 12V LiFePO4 batteries built for serious house-power systems: the serviceable V2-T Elite, the premium V2 Elite, and the value-focused 460Ah Essential Series.

Best Safety & Serviceability Pick

12V 460Ah V2-T Elite

The highest-featured option here, built for premium Victron-connected systems with IP67 protection, Bluetooth, internal heating, external controls, and an integrated 400A Eaton Class T fuse.

460Ah Capacity

230A Output

Class T Fuse

Shop V2-T Elite

Best Premium System Pick

12V 460Ah V2 Elite

A premium 8D lithium upgrade for RV, marine, off-grid, solar, and inverter systems that need IP67 protection, Bluetooth monitoring, internal heating, and Victron communication.

5.89kWh Energy

230A Charge

IP67 Rated

Shop V2 Elite

Best Value 460Ah Pick

12V 460Ah Essential

The simpler Group 8D deep-cycle option for large 12V house-power systems where Bluetooth monitoring and internal heating matter, but Victron communication and IP67 sealing are not required.

460Ah Capacity

200A Output

84 lb Weight

Shop Essential

✓ 11 Year Warranty

☊ Bluetooth Monitoring

↯ Internal Heating

▣ Advanced BMS

◆ Select Victron Ready

✚ LiFePO4 Safety

Side-by-Side Specs

Compare output, charging, Victron communication, protection rating, expansion, dimensions, weight, and the key reason to choose each model.

Comparison table for three Epoch 12V 460Ah LiFePO4 battery models
Feature	12V 460Ah V2-T Elite SKU C12460A-A · Heated Bluetooth Elite with Class T Fuse Class T Fuse Victron Heated IP67	12V 460Ah V2 Elite SKU C12460A · Heated Bluetooth Elite with Victron Comms Victron Heated IP67 8D	12V 460Ah Essential SKU 12460A-H · Heated Bluetooth Deep-Cycle LiFePO4 Heated Bluetooth IP54 8D
Best For	Premium marine, RV, solar, off-grid, and large inverter systems where safety, serviceability, Victron DVCC integration, and IP67 protection are top priorities.	Premium 12V house-power banks that need IP67 waterproofing, Bluetooth, internal heating, Victron communication, and strong charge/discharge performance.	Value-focused RV, marine house power, solar, backup, and off-grid systems that need 460Ah capacity with Bluetooth and internal heating in a simpler package.
Battery Role	Most serviceable Elite option High-capacity deep-cycle LiFePO4 battery with integrated Eaton Class T fuse.	Premium Elite option High-capacity heated Bluetooth LiFePO4 battery with Victron communication.	Value Essential option High-capacity heated Bluetooth deep-cycle LiFePO4 battery.
Nominal Voltage	12.8V	12.8V	12.8V
Nominal Capacity	460Ah	460Ah	460Ah
Stored Energy	5.89kWh	5.89kWh	5.89kWh
Bluetooth Monitoring	Yes — compatible with the Epoch app.	Yes — compatible with iOS and Android apps.	Yes — compatible with iOS and Android apps.
Internal Heating	Yes — built-in heating for cold-weather charging support.	Yes — self-heating support for freezing conditions.	Yes — internal heating allows charging in sub-zero conditions.
Victron Communication	Yes — CAN communication with distributed charge control via DVCC.	Yes — BMS CAN communication for compatible Victron GX systems.	No Victron communication listed — use as a standard Bluetooth monitored battery.
Fuse / Local Controls	Integrated 400A Eaton Class T fuse, external power button, and battery gauge included.	UL listed internal fuse, external power button, and upgraded battery gauge included.	Built-in smart BMS protection. External power button, external gauge, and Class T fuse are not listed as included features.
Max Continuous Discharge	230A @ 25°C	230A	200A
Max Continuous Charge	210A @ 25°C	230A	200A
Peak Output	500A for 30 seconds 1,300A for 1 second	500A for 30 seconds 1,300A for 1 second	400A for 10 seconds
Cycle Life	4,000+ cycles	3,500+ cycles	4,000+ cycles
Ingress Protection	IP67 — dust-tight and immersion-rated when properly sealed.	IP67 — waterproof and dustproof construction.	IP54 — weather-resistant protection.
Series / Parallel	Up to 4 in series or up to 16 in parallel. Series-parallel configuration is not supported.	Up to 4 in series and up to 16 in parallel.	Up to 4 in series and up to 4 in parallel, maximum 4S4P.
Group / Footprint	Large 8D-style footprint for high-capacity systems.	Group 8D.	Group 8D.
Dimensions	20.86" L × 8.65" W × 12.06" H	20.86" L × 8.65" W × 12.06" H Approx. rounded size: 20.9" L × 8.7" W × 12.1" H	20.55" L × 9.45" W × 8.60" H
Weight	97.55 lb	97 lb	84 lb — lightest in this comparison.
Certifications / Compliance	UL1973 certified pack; UL1642, UL9540A, and IEC 62619:2022 certified cells; CE and RoHS.	UL1973 certified pack; UL1642, UL9540A, and IEC 62619:2022 certified cells; CE and RoHS.	UL1642 cells, UL9540A cells, IEC 62619:2022, CE, RoHS, UN 38.3, and Class 9 shipping classification listed.
Warranty	11-year manufacturer warranty	11-year manufacturer warranty	11-year manufacturer warranty
Quick Recommendation	Choose the V2-T Elite when the installation calls for the most safety-focused and serviceable setup, especially where the integrated Class T fuse and Victron DVCC control are valuable.	Choose the V2 Elite when you want a premium waterproof Victron-ready 460Ah battery with 230A charge/discharge capability, Bluetooth, heating, and 16-battery parallel expansion.	Choose the 460Ah Essential when you want the same 460Ah / 5.89kWh capacity with Bluetooth and heating at a simpler feature level, lower weight, and IP54 weather resistance.
Shop	Shop V2-T Elite	Shop V2 Elite	Shop Essential

Confirm battery tray fitment, cable clearance, charger settings, inverter requirements, terminal compatibility, overcurrent protection, communication setup, and system design before purchase or installation. Product specifications, pricing, inventory, and promotional details may change; use the shop buttons for the latest product-page information.

Compare Epoch Elite Batteries

Model	Capacity	Energy	Weight	Bluetooth	Heating	Victron Ready
12V 460Ah EliteThis model	460Ah	5.89 kWh	97 lbs	Yes	Yes	No
24V 230Ah Elite	230Ah	5.89 kWh	97 lbs	Yes	Yes	No
48V 100Ah Elite	100Ah	5.12 kWh	97 lbs	Yes	Yes	No

12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)

Choose your configuration:

Have a question?

Specifications

Key Benefits

Battery Intelligence

Your whole system, in your pocket

Built to talk to your Victron system

What Can It Run?

Downloadable Resources

Epoch 12V 460Ah V2-T Elite Series LiFePO4 Battery

Built for high-capacity systems

Elite Series lithium energy storage

Compatible applications

Battery features

What can it run?

Compatible chargers and system components

Specifications

IP67 waterproof protection

Victron-ready battery communication

Why upgrade to Epoch LiFePO4?

Fitment and installation note

Frequently asked questions

Compare Epoch 460Ah 12V Power

12V 460Ah V2-T Elite

12V 460Ah V2 Elite

12V 460Ah Essential

Side-by-Side Specs

More from Elite Series

48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)

12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

48V 100Ah V2-T Elite Series LiFePO4 Battery (5.12kWh)

Additional Resources

Safety Certifications & Listings

IP Rating

CE

UL1973

RoHS

Compare Epoch Elite Batteries

12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)

Choose your configuration:

Description

Recommended Charging Settings

Have a question?

Specifications

Key Benefits

Battery Intelligence

Your whole system, in your pocket

Built to talk to your Victron system

What Can It Run?

Downloadable Resources

Epoch 12V 460Ah V2-T Elite Series LiFePO4 Battery

Built for high-capacity systems

Elite Series lithium energy storage

Compatible applications

Battery features

What can it run?

Compatible chargers and system components

Specifications

IP67 waterproof protection

Victron-ready battery communication

Why upgrade to Epoch LiFePO4?

Fitment and installation note

Frequently asked questions

Compare Epoch 460Ah 12V Power

12V 460Ah V2-T Elite

12V 460Ah V2 Elite

12V 460Ah Essential

Side-by-Side Specs

More from Elite Series

48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)

12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

48V 100Ah V2-T Elite Series LiFePO4 Battery (5.12kWh)

Additional Resources

Safety Certifications & Listings

IP Rating

CE

UL1973

RoHS

Compare Epoch Elite Batteries
