48V 105Ah Golf Cart Battery - Lithium (LiFePO4) - BATTERY ONLY
In Stock
$1,999
IP67Bluetooth
- for Club Car DS, select 'Other'.
- 11-year limited warranty
- US-based support
- Available to ship today
Features at a glance
- IP67Waterproof
Dust-tight and protected against temporary immersion to 1 m for 30 minutes.
- 3,500+Cycle life
Over 9 years at one full cycle a day. Rated at the depth of discharge, charge rate and temperature stated on the datasheet, to its end-of-life capacity.
- iOS + AndroidBluetooth app
Charge, voltage and temperature on your phone in the Epoch Li-Ion app.
- Advanced BMSProtection
Guards against overcharge, over-discharge, overcurrent and short circuit.
- LiFePO4Thermal stability
Lithium iron phosphate has a far lower thermal-runaway risk than other lithium chemistries. The BMS adds over-temperature and low-temperature charge protection.
- Bluetooth App (iOS & Android)
- Over the air firmware updates available
- 200A Max Continuous Discharge
- 300A @ 15s, 700A @ 2s Peak Discharge
- 100A Max Continuous Charge
- 300A @ 15s Peak Charge/Regen
- 3,500 Cycle Life
- 11-Year Limited Warranty: 5 yrs free repair or replacement, then 40% off MSRP to Year 11
Configuration
Cell Configuration: 16S1P
Chemistry: LiFePO4
Current
Ah Capacity: 105Ah
Max Continuous Discharge Amps: 200A
Max Charge Current Amps: 100A Continuous, 300A (up to 15 Seconds, regenerative braking)
Max Discharge Peak Current Amps: 300A (up to 15 Seconds), 700A (up to 2 Seconds)
Series | Parallel: Parallel only, max 2 (210Ah); series not supported
Voltage
Voltage: 51.2V
Max Charge Voltage: 58.4V
Operating Voltage Range: 40 - 58.4V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -10°C (14°F) / 55°C (131°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight: 99 (LBS)
Dimensions
Length: 18.1 (inches)
Width: 13.4 (inches)
Height: 9.8 (inches)

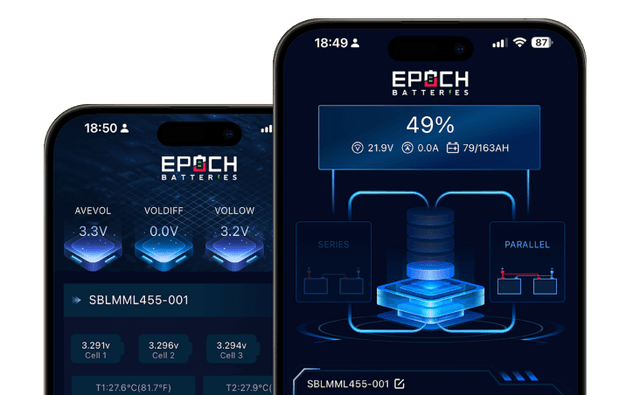

Epoch Li-Ion App
Still have questions?
We're here to help! Give us a call and talk with a US-based technical expert.
1/5
Hover to zoom
Downloadable resources
Additional Resources
Safety certifications & listings
Every mark below is a standard this battery has been tested against or a listing it carries. Here is what each one covers, in plain English.
IP67
Ingress protection
Dust-tight, and protected against temporary immersion in up to 1 m of water for 30 minutes. Under IEC 60529 the first digit rates solids and the second rates water.
- Sealed against dust and dirt
- Temporary immersion to 1 m for 30 minutes
- Not rated for water jets or pressure washing
IEC 60529, Degrees of protection provided by enclosures
