GC2 Series
48V 90Ah GC2 - Golf Cart LiFePO4 Lithium Battery - Complete Kit
$2,599
IP67Bluetooth
Capacity: 90Ah
Range: 30mi - 40mi
90Ah
0 mi
50 mi
148V 15A Lithium Battery Charger - Epoch Batteries
1Bluetooth Module for GC2 Motive Batteries
1Battery Meter Fuel Gauge for GC2 Batteries
148V to 12V (25A) Voltage Reducer & Step Down Converter
1Parallel Busbar
1NOCO GCP1 15A AC Port Plug
1GC2 Battery Lifting Strap & Carrier
34 AWG 24-Inch Battery Cable - Heavy Duty Wire
348V 30Ah (1.54kWh) GC2 - Golf Cart LiFePO4 Lithium Battery
Features at a glance
- IP67Waterproof
Dustproof and submersible to 1 m for 30 minutes.
- 4,000+Cycle life
Over 10 years at one full cycle a day. Rated at the depth of discharge, charge rate and temperature stated on the datasheet, to its end-of-life capacity.
- iOS + AndroidBluetooth app
Charge, voltage and temperature on your phone in the Epoch Pro app.
- Advanced BMSProtection
Guards against overcharge, over-discharge, overcurrent and short circuit.
- LiFePO4Thermal stability
Lithium iron phosphate has a far lower thermal-runaway risk than other lithium chemistries. The BMS adds over-temperature and low-temperature charge protection.
- LiFePO4 Chemistry
- 90Ah Capacity (30-40 miles runtime for standard golf cart)
- 180A Max Continuous Discharge (300A 10S Discharge) (600A 3S Peak Discharge)
- Bluetooth Module INCLUDED
- 0 to 100% Charge in 6 hours with included 48V 15A Charger
- IP67 Rated, Dust and WATERPROOF
- CAN Bus Communication allows battery modules to work in sync
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 4000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Configuration
Cell Configuration: 16S
Chemistry: LiFePO4
Current
Ah Capacity: 90Ah
Max Continuous Discharge Amps: 180A
Max Charge Current Amps: 30A
Max Discharge Peak Current Amps: 300A (10 Seconds) - 600A (3 Seconds)
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
Voltage
Voltage: 48
Max Charge Voltage: 57.6V
Operating Voltage Range: 40.0 - 57.6V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)
Weight: 33 (LBS) (per module x3)
Dimensions
Length: 10.25 (inches)
Width: 7 (per module x3) (inches)
Height: 11 (inches)
M8 Terminals - Torque Tension Recommendation is 8-12N·M
Pack Certifications: UN38.3, CE
Cell Certifications: UL1642, UL2580, UN38.3
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
- Compatible with stock & upgraded golf carts
- Modified/Upgraded controller
- Large tires with a lift kit
- 300A 10 seconds, 600A 3 seconds max discharge

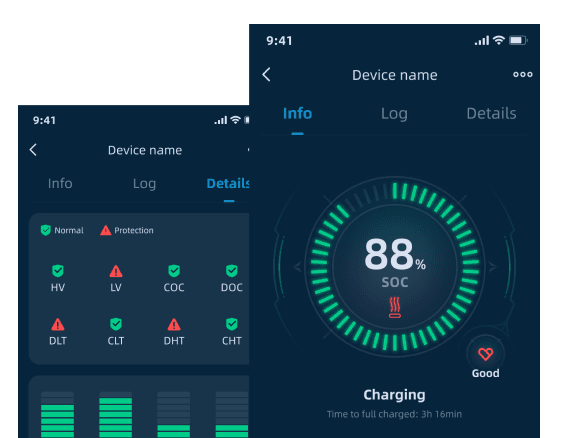

Epoch Pro App
Still have questions?
We're here to help! Give us a call and talk with a US-based technical expert.
1/6
Hover to zoom
Downloadable resources
Applications & use cases
- TROJAN T-105 EXACT REPLACEMENT
- MODULE DESIGN
- GC2 SIZE
- IP67 - WATERPROOF
- STACK FOR INCREASED POWER OUTPUT
- CONNECT UP TO 10 IN PARALLEL (300AH)
- 48V GOLF CARTS
Our 48V 90Ah GC2 LiFePO4 Lithium Battery Cube offers superior power and performance for your 48V golf cart. Delivering up to 40 miles of runtime on a single charge, and a peak discharge of 300A/10s, this battery Cube provides maintenance-free performance with 4000+ cycle life and 11 year manufacturer warranty. Built-in Smart Battery Management System (BMS), IP67 rating, and 0-100% charge in 4 hours makes this a reliable and efficient upgrade for your electric vehicle. CAN Bus communication allows for seamless stacking up to 10 modules in parallel for maximum power output.
More from Gc2 Series
Additional Resources
Safety certifications & listings
Every mark below is a standard this battery has been tested against or a listing it carries. Here is what each one covers, in plain English.
IP67
Ingress protection
Dust-tight, and protected against temporary immersion in up to 1 m of water for 30 minutes. Under IEC 60529 the first digit rates solids and the second rates water.
- Sealed against dust and dirt
- Rain, spray and wash-down
- Survives being submerged
IEC 60529, Degrees of protection provided by enclosures
UL 2271
Light EV battery safety
The UL standard for lithium battery packs in light electric vehicles such as golf carts and e-bikes. The pack and its BMS are tested to survive electrical, mechanical and environmental abuse without fire or rupture.
- Overcharge, short-circuit and over-discharge
- Crush, drop, shock and vibration
- Thermal cycling and heating tests
UL 2271, Batteries for use in light electric vehicle (LEV) applications
UN 38.3
Transport safety
The United Nations test series every lithium battery must pass before it can be shipped by air, sea or road.
- Altitude, thermal and vibration tests
- Shock, external short-circuit and impact
- Overcharge and forced discharge
UN Manual of Tests and Criteria, Part III, sub-section 38.3
CE
EU conformity
The manufacturer's declaration that the product meets the European Union's health, safety and environmental requirements, which is required to sell it in the European Economic Area.
- Applicable EU safety directives
- Electromagnetic compatibility
- Environmental requirements
CE marking, EU declaration of conformity
UL 1642
Lithium cell safety
The UL standard for lithium cells. Each cell design is tested for fire and explosion risk under abuse before it is built into a pack.
- Short-circuit and overcharge
- Crush, impact and shock
- Heating and temperature cycling
UL 1642, Lithium batteries
UL 2580
EV battery safety
The UL standard for battery packs in electric vehicles. It puts the pack through electrical, mechanical and environmental abuse tests to confirm it fails safely under fault conditions.
- Short-circuit, overcharge and imbalance tests
- Crush, impact and vibration
- Thermal and environmental exposure
UL 2580, Batteries for use in electric vehicles
