Big Box Series
48V 230Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
$3,699
IP67Bluetooth
Capacity: 230Ah
Configuration: EZGO TXT
- 11-year warranty
- US-based support
- Available to ship today
Features at a glance
- IP67Waterproof
Dustproof and submersible to 1 m for 30 minutes.
- 4,000+Cycle life
Over 10 years at one full cycle a day. Rated at the depth of discharge, charge rate and temperature stated on the datasheet, to its end-of-life capacity.
- iOS + AndroidBluetooth app
Charge, voltage and temperature on your phone in the Epoch Li-Ion app.
- Advanced BMSProtection
Guards against overcharge, over-discharge, overcurrent and short circuit.
- LiFePO4Thermal stability
Lithium iron phosphate has a far lower thermal-runaway risk than other lithium chemistries. The BMS adds over-temperature and low-temperature charge protection.
- Complete Lithium Conversion Kit
- 48V 22A Lithium Charger, Battery Gauge, 12V Converter INCLUDED
- Bluetooth App (iOS & Android)
- Over the air firmware updates available
- 300A Max Continuous Discharge
- 500A @ 15s, 1,000A @ 2s Peak Discharge
- 230A Max Continuous Charge
- 500A @ 15s Peak Charge/Regen
- 4,000 Cycle Life
- 11 Year Warranty
Configuration
Cell Configuration: 1P16S
Chemistry: LiFePO4
Current
Ah Capacity: 230Ah
Max Continuous Discharge Amps: 300A
Max Charge Current Amps: 230A Continuous, 500A @ 15s
Max Discharge Peak Current Amps: 500A @ 15s, 1,000A @ 2s
Series | Parallel: Max (2) in Parallel
Voltage
Voltage: 51.2V
Max Charge Voltage: 58.4V
Operating Voltage Range: 40 - 58.4V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight: 196 (LBS)
Dimensions
Length: 23.5 (inches)
Width: 14.4 (inches)
Height: 9.9 (inches)
n/a

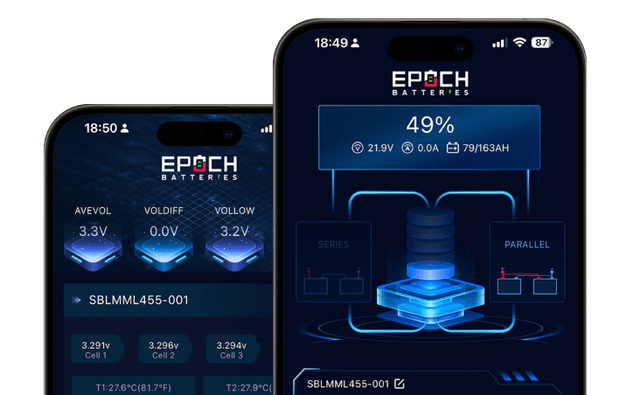

Epoch Li-Ion App
Still have questions?
We're here to help! Give us a call and talk with a US-based technical expert.
1/6
Hover to zoom
Downloadable resources
Compatible With All Major Golf Cart Brands
Applications & use cases
- Golf carts
- Neighborhood electric vehicles and utility vehicles
- Commercial fleet and specialty power systems
More from Big Box Series
48V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
70
$2,29948V 105Ah
70.4V (72V) 105ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
2
$2,99972V 105Ah
36V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
6
$1,79936V 105Ah
48V 105Ah MINI Golf Cart Battery Complete Kit - Lithium (LiFePO4)
5
$2,29948V 105Ah
48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
3
$1,79948V 65Ah
48V 150Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
$2,89948V 150Ah
As Featured In
Golf Car Options Magazine
Additional Resources
Safety certifications & listings
Every mark below is a standard this battery has been tested against or a listing it carries. Here is what each one covers, in plain English.
IP67
Ingress protection
Dust-tight, and protected against temporary immersion in up to 1 m of water for 30 minutes. Under IEC 60529 the first digit rates solids and the second rates water.
- Sealed against dust and dirt
- Rain, spray and wash-down
- Survives being submerged
IEC 60529, Degrees of protection provided by enclosures
